Projected Toolpath Test Files

NOTE - These are just normal AP-238 surfacing toolpaths, but the original MasterCAM data that they were generated from used a projection technique to model the machining.

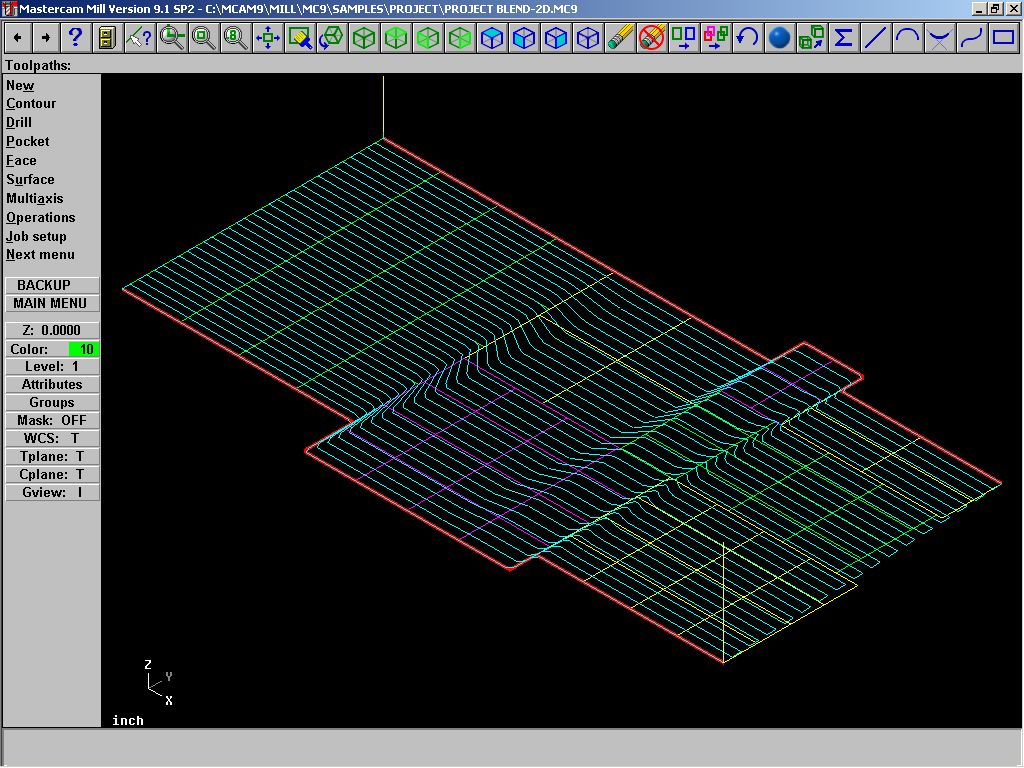

project blend 2d

project-blend-2d.stp

AP-238 CC1 (toolpath only)
Size: 79828 bytes
Origin: MasterCAM test file, toolpaths exported as AP-238
Images:

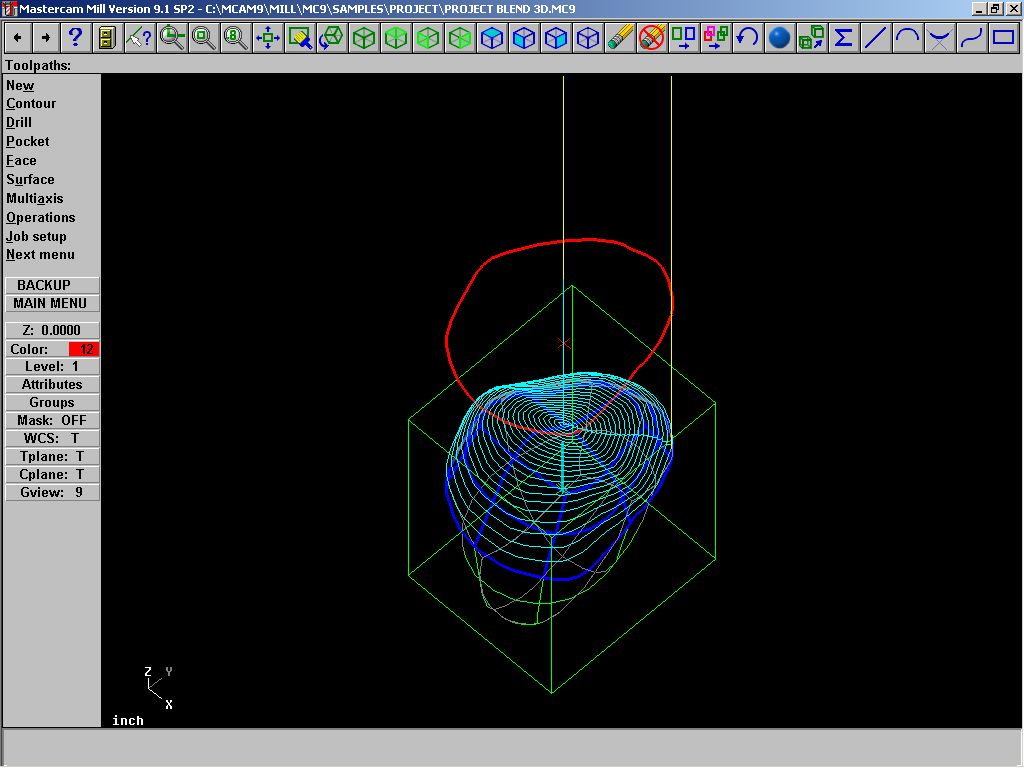

project blend 3d

project-blend-3d.stp

AP-238 CC1 (toolpath only)
Size: 79421 bytes
Origin: MasterCAM test file, toolpaths exported as AP-238
Images:


project blend mx project

project-blend-mx-project.stp

AP-238 CC1 (toolpath only)
Size: 2113961 bytes
Origin: MasterCAM test file, toolpaths exported as AP-238
Images:


project curves husky

project-curves-husky.stp

AP-238 CC1 (toolpath only)
Size: 8161870 bytes
Origin: MasterCAM test file, toolpaths exported as AP-238
Images:
