Figure C.2 — ARM entity level EXPRESS-G diagram 1 of 1 ../product_view_definition/sys/4_info_reqs.htm#product_view_definition_arm.product_view_definition ../product_identification/sys/4_info_reqs.htm#product_identification_arm.product ../product_occurrence/sys/4_info_reqs.htm#product_occurrence_arm.definition_based_product_occurrence ../product_version/sys/4_info_reqs.htm#product_version_arm.product_version ../assembly_structure/sys/4_info_reqs.htm#assembly_structure_arm.assembly_component_relationship ../component_grouping/sys/4_info_reqs.htm#component_grouping_arm.assembly_group_component ../product_view_definition_relationship/sys/4_info_reqs.htm#product_view_definition_relationship_arm.view_definition_relationship ../assembly_component/sys/4_info_reqs.htm#assembly_component_arm.component_make_from_relationship ../assembly_component/sys/4_info_reqs.htm#assembly_component_arm.physical_component ../assembly_component/sys/4_info_reqs.htm#assembly_component_arm.assembly_component ../assembly_component/sys/4_info_reqs.htm#assembly_component_arm.thermal_component

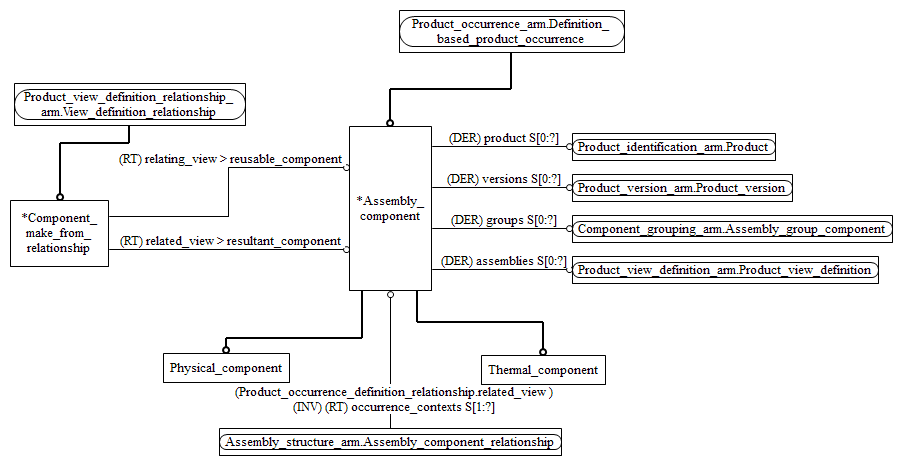

Figure C.2 — ARM entity level EXPRESS-G diagram 1 of 1
