Figure C.2 — ARM entity level EXPRESS-G diagram 1 of 1 ../product_view_definition_relationship/sys/4_info_reqs.htm#product_view_definition_relationship_arm.view_definition_relationship ../layered_interconnect_complex_template/sys/4_info_reqs.htm#layered_interconnect_complex_template_arm.stratum_specific_template_location ../layered_interconnect_complex_template/sys/4_info_reqs.htm#layered_interconnect_complex_template_arm.template_arrangement ../part_feature_location/sys/4_info_reqs.htm#part_feature_location_arm.usage_concept_usage_relationship ../physical_unit_usage_view/sys/4_info_reqs.htm#physical_unit_usage_view_arm.part_usage_view ../physical_unit_usage_view/sys/4_info_reqs.htm#physical_unit_usage_view_arm.part_feature ../layered_interconnect_complex_template/sys/4_info_reqs.htm#layered_interconnect_complex_template_arm.template_location_in_structured_template ../elemental_geometric_shape/sys/4_info_reqs.htm#elemental_geometric_shape_arm.geometric_model ../contextual_shape_positioning/sys/4_info_reqs.htm#contextual_shape_positioning_arm.geometric_model_relationship_with_transformation ../layered_interconnect_complex_template/sys/4_info_reqs.htm#layered_interconnect_complex_template_arm.structured_template_planar_shape_model ../shape_parameters/sys/4_info_reqs.htm#shape_parameters_arm.physical_unit_shape_model_select ../layered_interconnect_simple_template/sys/4_info_reqs.htm#layered_interconnect_simple_template_arm.single_stratum_template ../layered_interconnect_complex_template/sys/4_info_reqs.htm#layered_interconnect_complex_template_arm.template_location_in_structured_template ../product_view_definition/sys/4_info_reqs.htm#product_view_definition_arm.product_view_definition ../elemental_geometric_shape/sys/4_info_reqs.htm#elemental_geometric_shape_arm.geometric_model ../layered_interconnect_complex_template/sys/4_info_reqs.htm#layered_interconnect_complex_template_arm.multi_stratum_structured_template ../layered_interconnect_simple_template/sys/4_info_reqs.htm#layered_interconnect_simple_template_arm.stratum_feature_template ../footprint_definition/sys/4_info_reqs.htm#footprint_definition_arm.footprint_definition ../footprint_definition/sys/4_info_reqs.htm#footprint_definition_arm.footprint_definition_shape_model ../footprint_definition/sys/4_info_reqs.htm#footprint_definition_arm.stratum_feature_template_location_in_breakout_footprint_definition ../footprint_definition/sys/4_info_reqs.htm#footprint_definition_arm.generic_footprint_definition ../footprint_definition/sys/4_info_reqs.htm#footprint_definition_arm.breakout_footprint_definition ../footprint_definition/sys/4_info_reqs.htm#footprint_definition_arm.package_footprint_relationship_definition ../footprint_definition/sys/4_info_reqs.htm#footprint_definition_arm.breakout_footprint_definition_shape_model ../footprint_definition/sys/4_info_reqs.htm#footprint_definition_arm.part_feature_based_template_location ../footprint_definition/sys/4_info_reqs.htm#footprint_definition_arm.structured_template_planar_shape_model_subtypes ../footprint_definition/sys/4_info_reqs.htm#footprint_definition_arm.multi_stratum_structured_template_subtypes

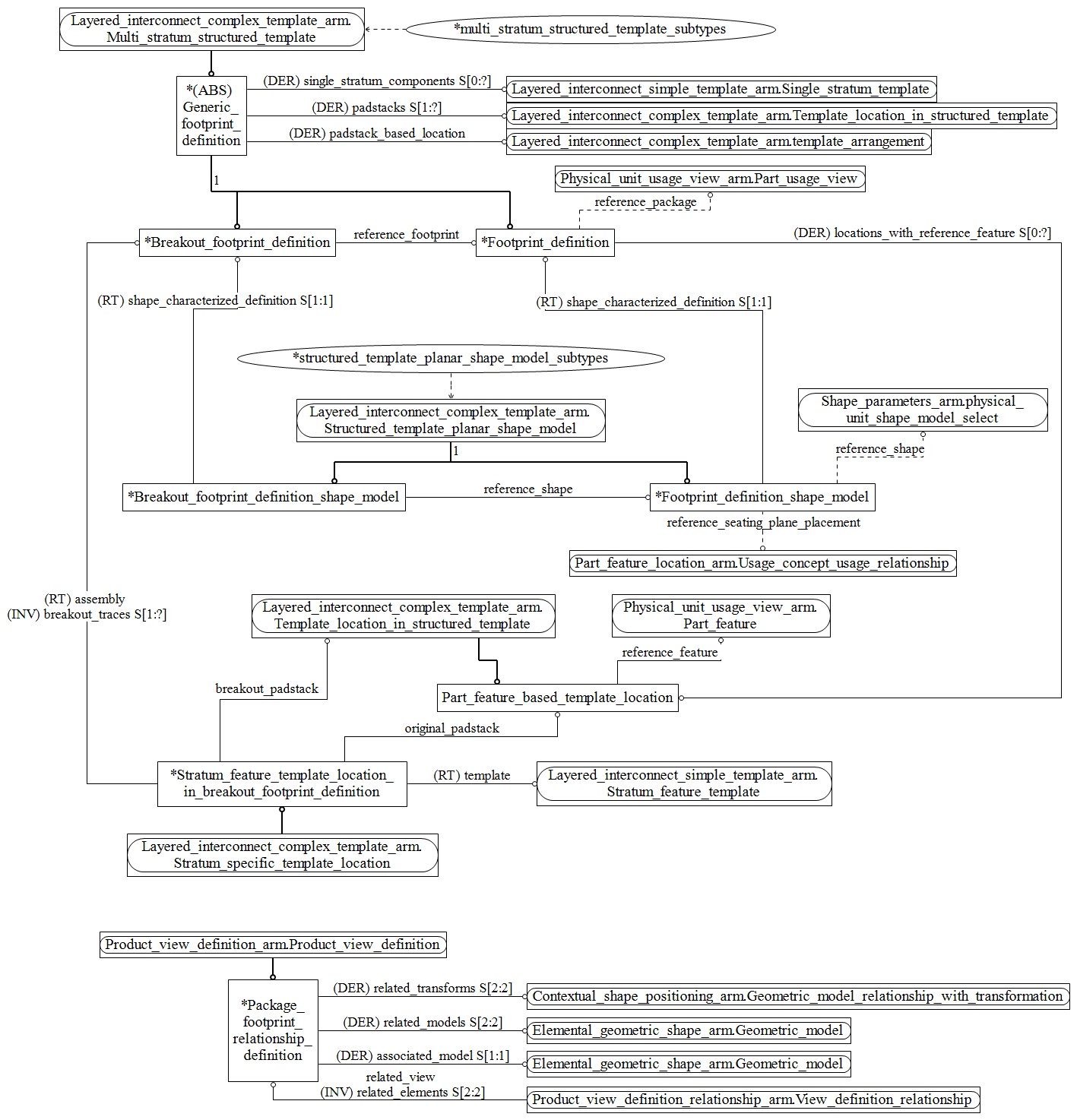

Figure C.2 — ARM entity level EXPRESS-G diagram 1 of 1
