Figure C.5 — ARM entity level EXPRESS-G diagram 4 of 4 ../layered_interconnect_simple_template/sys/4_info_reqs.htm#layered_interconnect_simple_template_arm.list_usage_concept ./armexpg3.htm ./armexpg3.htm ./armexpg3.htm ./armexpg3.htm ../shape_property_assignment/sys/4_info_reqs.htm#shape_property_assignment_arm.shape_element ../part_template/sys/4_info_reqs.htm#part_template_arm.template_definition ../fabrication_technology/sys/4_info_reqs.htm#fabrication_technology_arm.stratum_technology_occurrence_link ../part_shape/sys/4_info_reqs.htm#part_shape_arm.general_part_feature ../shape_feature/sys/4_info_reqs.htm#shape_feature_arm.instanced_feature ../part_feature_location/sys/4_info_reqs.htm#part_feature_location_arm.usage_concept ../fabrication_technology/sys/4_info_reqs.htm#fabrication_technology_arm.stratum_technology_occurrence_link ../feature_and_connection_zone/sys/4_info_reqs.htm#feature_and_connection_zone_arm.connection_zone ../layered_interconnect_simple_template/sys/4_info_reqs.htm#layered_interconnect_simple_template_arm.land_connection_zone_class ../layered_interconnect_simple_template/sys/4_info_reqs.htm#layered_interconnect_simple_template_arm.land_template_terminal_class ../layered_interconnect_simple_template/sys/4_info_reqs.htm#layered_interconnect_simple_template_arm.connection_zone_in_layout_template ../layered_interconnect_simple_template/sys/4_info_reqs.htm#layered_interconnect_simple_template_arm.via_template_terminal ../layered_interconnect_simple_template/sys/4_info_reqs.htm#layered_interconnect_simple_template_arm.land_template_join_terminal ../layered_interconnect_simple_template/sys/4_info_reqs.htm#layered_interconnect_simple_template_arm.land_template_interface_terminal ../layered_interconnect_simple_template/sys/4_info_reqs.htm#layered_interconnect_simple_template_arm.land_template_terminal ../layered_interconnect_simple_template/sys/4_info_reqs.htm#layered_interconnect_simple_template_arm.component_termination_passage_template_terminal ../layered_interconnect_simple_template/sys/4_info_reqs.htm#layered_interconnect_simple_template_arm.component_termination_passage_template_join_terminal ../layered_interconnect_simple_template/sys/4_info_reqs.htm#layered_interconnect_simple_template_arm.component_termination_passage_template_interface_terminal ../layered_interconnect_simple_template/sys/4_info_reqs.htm#layered_interconnect_simple_template_arm.lisp_shape_element_subtypes ../layered_interconnect_simple_template/sys/4_info_reqs.htm#layered_interconnect_simple_template_arm.list_shape_feature_subtypes

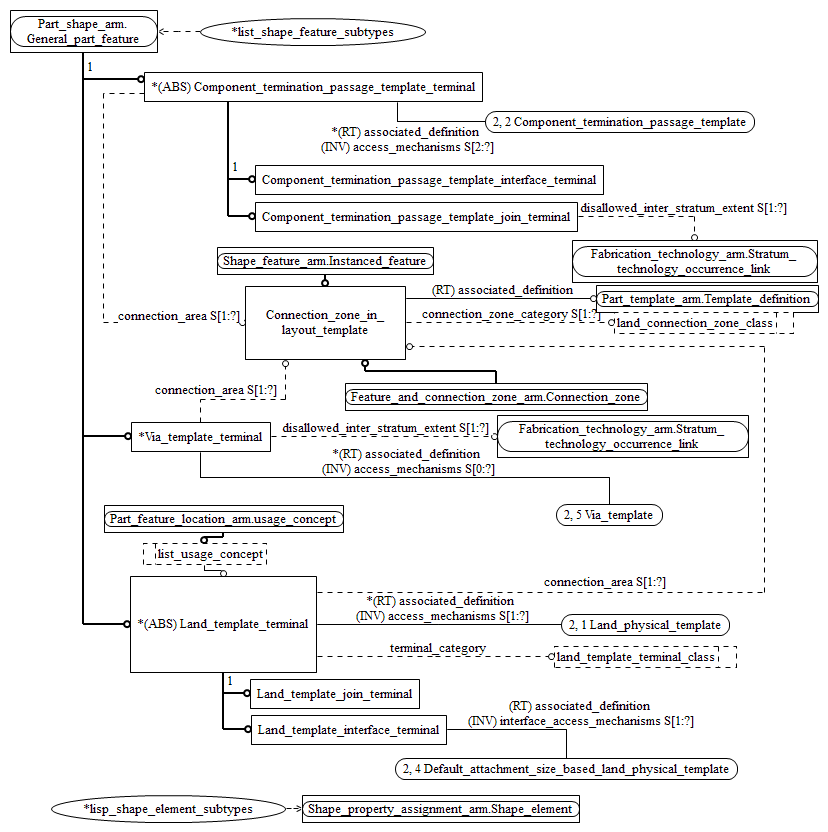

Figure C.5 — ARM entity level EXPRESS-G diagram 4 of 4
