Application module: Machining features ISO/TS 10303-1814:2019(E)
© ISO

Cover page
Table of contents
Copyright
Foreword
Introduction
1 Scope
2 Normative references
3 Terms, definitions and abbreviated terms
    3.1 Terms and definitions
    3.2 Abbreviated terms

4 Information requirements
   4.1 Required AM ARMs
   4.2 ARM type definitions
   4.3 ARM entity definitions
   4.4 ARM subtype constraint definition
5 Module interpreted model
   5.1 Mapping specification
   5.2 MIM EXPRESS short listing
     5.2.1 MIM type definition
     5.2.2 MIM entity definition
     5.2.3 MIM rule definitions

A MIM short names
B Information object registration
C ARM EXPRESS-G   EXPRESS-G
D MIM EXPRESS-G   EXPRESS-G
E Computer interpretable listings
F Change history
Bibliography
Index

Mapping tableIndex of EXPRESS-G pagesFirst pagePrevious page
Figure C.20 — ARM entity level EXPRESS-G diagram 19 of 19 ./armexpg2.htm ./armexpg2.htm ./armexpg19.htm ./armexpg9.htm ./armexpg9.htm ../measure_representation/sys/4_info_reqs.htm#measure_representation_arm.numerical_item_with_unit ../measure_representation/sys/4_info_reqs.htm#measure_representation_arm.numerical_item_with_unit ../measure_representation/sys/4_info_reqs.htm#measure_representation_arm.numerical_item_with_unit ../measure_representation/sys/4_info_reqs.htm#measure_representation_arm.numerical_item_with_unit ../measure_representation/sys/4_info_reqs.htm#measure_representation_arm.numerical_item_with_unit ../measure_representation/sys/4_info_reqs.htm#measure_representation_arm.numerical_item_with_unit ../measure_representation/sys/4_info_reqs.htm#measure_representation_arm.numerical_item_with_unit ../measure_representation/sys/4_info_reqs.htm#measure_representation_arm.numerical_item_with_unit ../machining_features/sys/4_info_reqs.htm#machining_features_arm.linear_profile ../machining_features/sys/4_info_reqs.htm#machining_features_arm.general_open_profile ../machining_features/sys/4_info_reqs.htm#machining_features_arm.open_profile ../machining_features/sys/4_info_reqs.htm#machining_features_arm.tee_profile ../machining_features/sys/4_info_reqs.htm#machining_features_arm.square_u_profile ../machining_features/sys/4_info_reqs.htm#machining_features_arm.rounded_u_profile ../machining_features/sys/4_info_reqs.htm#machining_features_arm.partial_circular_profile ../machining_features/sys/4_info_reqs.htm#machining_features_arm.vee_profile

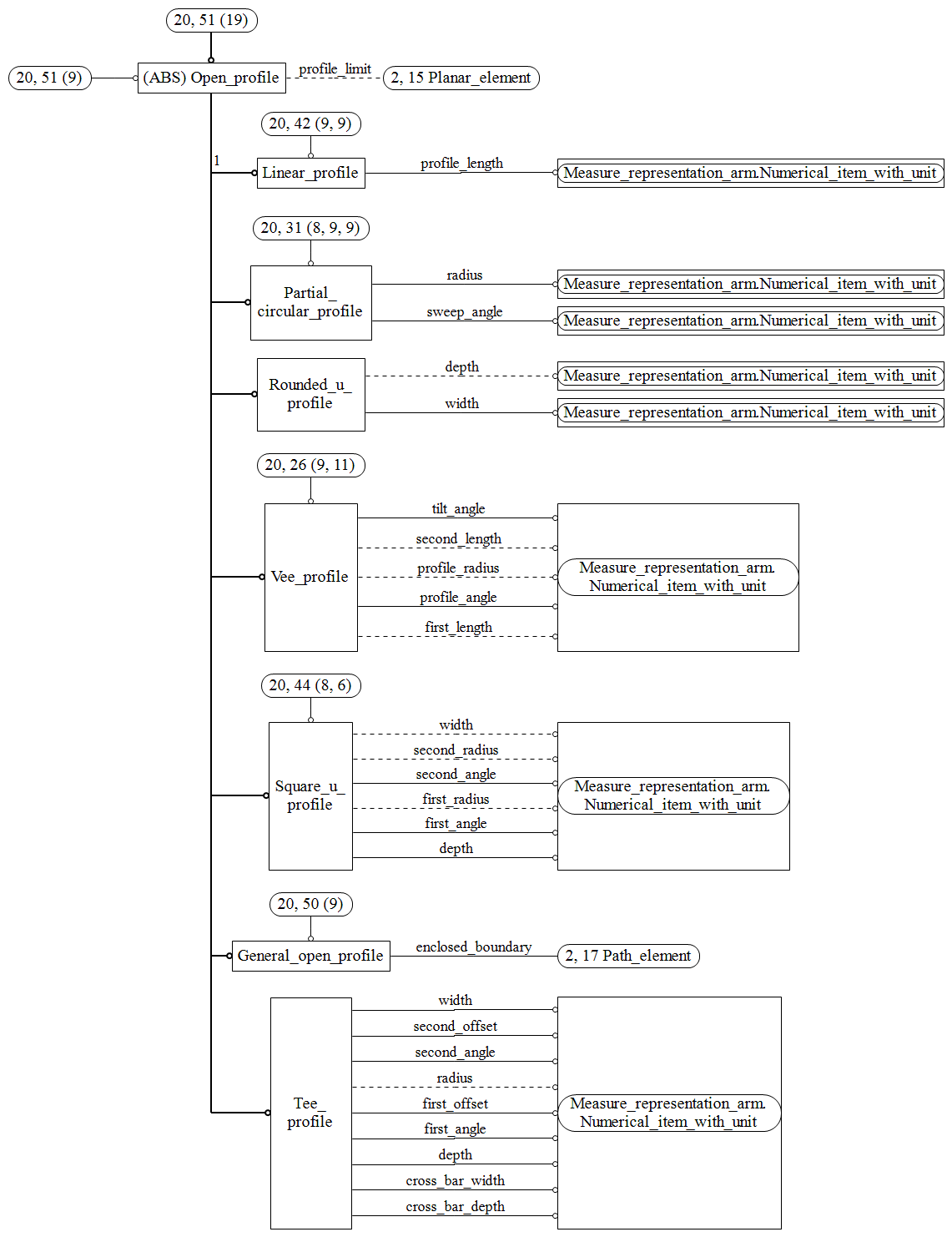

Figure C.20 — ARM entity level EXPRESS-G diagram 19 of 19


© ISO 2019 — All rights reserved
