Figure D.2 — MIM entity level EXPRESS-G diagram 1 of 1 ../../resources/product_property_representation_schema/product_property_representation_schema.htm#product_property_representation_schema.item_identified_representation_usage ../assembly_component/sys/5_mim.htm#assembly_component_mim.physical_component ../physical_component_feature/sys/5_mim.htm#physical_component_feature_mim.physical_component_feature ../../resources/product_property_representation_schema/product_property_representation_schema.htm#product_property_representation_schema.item_identified_representation_usage ../assembly_component/sys/5_mim.htm#assembly_component_mim.physical_component ../assembly_module_usage_view/sys/5_mim.htm#assembly_module_usage_view_mim.assembly_module_usage_view ../assembly_component/sys/5_mim.htm#assembly_component_mim.physical_component ../assembly_component/sys/5_mim.htm#assembly_component_mim.physical_component ../assembly_module_design/sys/5_mim.htm#assembly_module_design_mim.assembly_module_design_view ../assembly_module_with_interconnect_component/sys/5_mim.htm#assembly_module_with_interconnect_component_mim.bare_die_component ../assembly_module_with_interconnect_component/sys/5_mim.htm#assembly_module_with_interconnect_component_mim.routed_interconnect_component ../assembly_module_with_interconnect_component/sys/5_mim.htm#assembly_module_with_interconnect_component_mim.layered_assembly_module_usage_view ../assembly_module_with_interconnect_component/sys/5_mim.htm#assembly_module_with_interconnect_component_mim.layered_assembly_module_design_view ../assembly_module_with_interconnect_component/sys/5_mim.htm#assembly_module_with_interconnect_component_mim.layered_assembly_panel_design_view ../assembly_module_with_interconnect_component/sys/5_mim.htm#assembly_module_with_interconnect_component_mim.routed_physical_component ../assembly_module_with_interconnect_component/sys/5_mim.htm#assembly_module_with_interconnect_component_mim.interconnect_module_component ../assembly_module_with_interconnect_component/sys/5_mim.htm#assembly_module_with_interconnect_component_mim.interconnect_module_component_surface_feature ../assembly_module_with_interconnect_component/sys/5_mim.htm#assembly_module_with_interconnect_component_mim.amwic_physical_component_subtypes ../assembly_module_with_interconnect_component/sys/5_mim.htm#assembly_module_with_interconnect_component_mim.amwic_assembly_module_design_view_subtypes

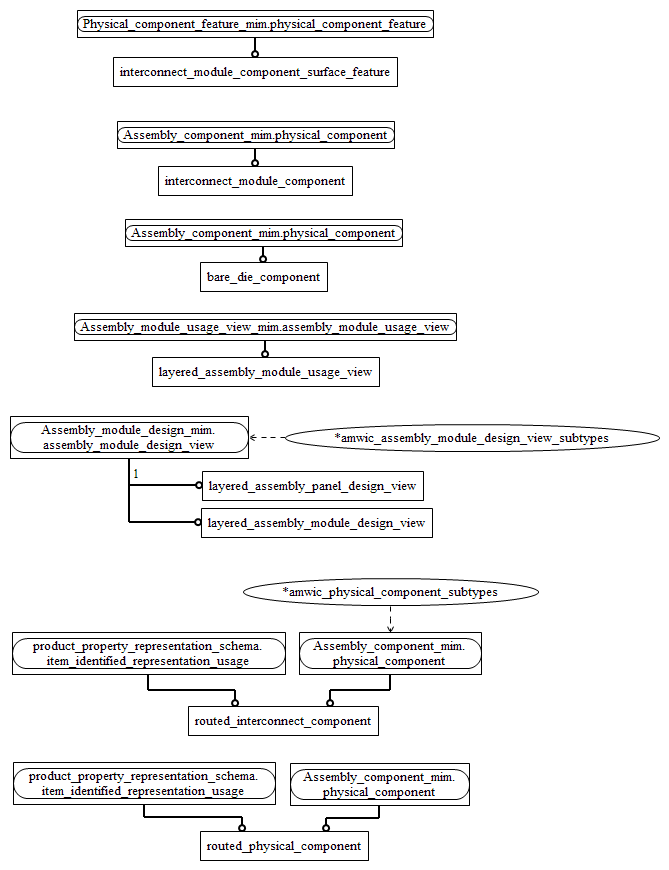

Figure D.2 — MIM entity level EXPRESS-G diagram 1 of 1
