Application module: Interconnect module usage view ISO/TS 10303-1686:2018-11(E)
© ISO

Cover page
Table of contents
Copyright
Foreword
Introduction
1 Scope
2 Normative references
3 Terms, definitions and abbreviated terms
    3.1 Terms and definitions
    3.2 Abbreviated terms

4 Information requirements
   4.1 Required AM ARMs
   4.2 ARM type definition
   4.3 ARM entity definitions
5 Module interpreted model
   5.1 Mapping specification
   5.2 MIM EXPRESS short listing
     5.2.1 MIM entity definitions

A MIM short names
B Information object registration
C ARM EXPRESS-G   EXPRESS-G
D MIM EXPRESS-G   EXPRESS-G
E Computer interpretable listings
F Change history
Bibliography
Index

Mapping tableIndex of EXPRESS-G pagesFirst pagePrevious page

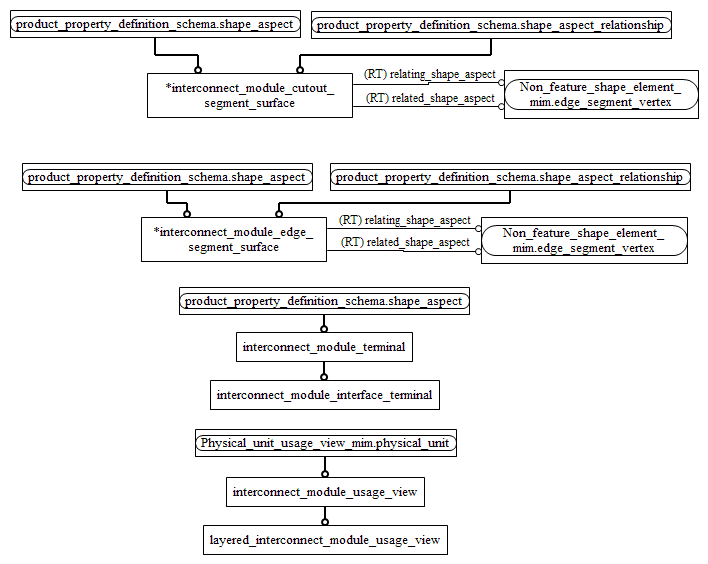

Figure D.2 — MIM entity level EXPRESS-G diagram 1 of 1 ../../resources/product_property_definition_schema/product_property_definition_schema.htm#product_property_definition_schema.shape_aspect_relationship ../non_feature_shape_element/sys/5_mim.htm#non_feature_shape_element_mim.edge_segment_vertex ../../resources/product_property_definition_schema/product_property_definition_schema.htm#product_property_definition_schema.shape_aspect ../../resources/product_property_definition_schema/product_property_definition_schema.htm#product_property_definition_schema.shape_aspect ../non_feature_shape_element/sys/5_mim.htm#non_feature_shape_element_mim.edge_segment_vertex ../physical_unit_usage_view/sys/5_mim.htm#physical_unit_usage_view_mim.physical_unit ../../resources/product_property_definition_schema/product_property_definition_schema.htm#product_property_definition_schema.shape_aspect ../../resources/product_property_definition_schema/product_property_definition_schema.htm#product_property_definition_schema.shape_aspect_relationship ../interconnect_module_usage_view/sys/5_mim.htm#interconnect_module_usage_view_mim.interconnect_module_terminal ../interconnect_module_usage_view/sys/5_mim.htm#interconnect_module_usage_view_mim.layered_interconnect_module_usage_view ../interconnect_module_usage_view/sys/5_mim.htm#interconnect_module_usage_view_mim.interconnect_module_interface_terminal ../interconnect_module_usage_view/sys/5_mim.htm#interconnect_module_usage_view_mim.interconnect_module_edge_segment_surface ../interconnect_module_usage_view/sys/5_mim.htm#interconnect_module_usage_view_mim.interconnect_module_cutout_segment_surface ../interconnect_module_usage_view/sys/5_mim.htm#interconnect_module_usage_view_mim.interconnect_module_usage_view


Figure D.2 — MIM entity level EXPRESS-G diagram 1 of 1
