Figure C.2 — ARM entity level EXPRESS-G diagram 1 of 2 ../layered_interconnect_module_with_printed_component_design/sys/4_info_reqs.htm#layered_interconnect_module_with_printed_component_design_arm.limwpcd_external_identification_item ./armexpg3.htm ./armexpg3.htm ../product_occurrence/sys/4_info_reqs.htm#product_occurrence_arm.single_instance ../external_item_identification_assignment/sys/4_info_reqs.htm#external_item_identification_assignment_arm.external_source_identification ../constructive_solid_geometry_2d/sys/4_info_reqs.htm#constructive_solid_geometry_2d_arm.curve_style_parameters ../printed_physical_layout_template/sys/4_info_reqs.htm#printed_physical_layout_template_arm.multi_stratum_printed_part_template ../layered_interconnect_module_design/sys/4_info_reqs.htm#layered_interconnect_module_design_arm.stratum ../layered_interconnect_module_design/sys/4_info_reqs.htm#layered_interconnect_module_design_arm.laminate_component ../layered_interconnect_module_design/sys/4_info_reqs.htm#layered_interconnect_module_design_arm.stratum_feature ../layered_interconnect_module_design/sys/4_info_reqs.htm#layered_interconnect_module_design_arm.stratum_feature_based_derived_pattern ../layered_interconnect_module_design/sys/4_info_reqs.htm#layered_interconnect_module_design_arm.structured_layout_component ../layered_interconnect_module_design/sys/4_info_reqs.htm#layered_interconnect_module_design_arm.structured_layout_component ../layered_interconnect_module_design/sys/4_info_reqs.htm#layered_interconnect_module_design_arm.plated_passage ../printed_physical_layout_template/sys/4_info_reqs.htm#printed_physical_layout_template_arm.printed_part_cross_section_template ../external_item_identification_assignment/sys/4_info_reqs.htm#external_item_identification_assignment_arm.external_identification_item ../printed_physical_layout_template/sys/4_info_reqs.htm#printed_physical_layout_template_arm.printed_tiebar_template ../layered_interconnect_module_design/sys/4_info_reqs.htm#layered_interconnect_module_design_arm.inter_stratum_extent ../basic_geometry/sys/4_info_reqs.htm#basic_geometry_arm.curve ../land/sys/4_info_reqs.htm#land_arm.plated_passage_dependent_land ../layered_interconnect_module_design/sys/4_info_reqs.htm#layered_interconnect_module_design_arm.structured_layout_component_sub_assembly_relationship ../printed_physical_layout_template/sys/4_info_reqs.htm#printed_physical_layout_template_arm.basic_multi_stratum_printed_part_template ../printed_physical_layout_template/sys/4_info_reqs.htm#printed_physical_layout_template_arm.printed_part_template ../printed_physical_layout_template/sys/4_info_reqs.htm#printed_physical_layout_template_arm.printed_connector_template ../layered_interconnect_module_design/sys/4_info_reqs.htm#layered_interconnect_module_design_arm.area_component ../printed_physical_layout_template/sys/4_info_reqs.htm#printed_physical_layout_template_arm.single_stratum_printed_part_template ../layered_interconnect_module_design/sys/4_info_reqs.htm#layered_interconnect_module_design_arm.generic_physical_network ../layered_interconnect_module_design/sys/4_info_reqs.htm#layered_interconnect_module_design_arm.stratum_feature ../assembly_component/sys/4_info_reqs.htm#assembly_component_arm.assembly_component ../layered_interconnect_module_design/sys/4_info_reqs.htm#layered_interconnect_module_design_arm.stratum ../layered_interconnect_module_with_printed_component_design/sys/4_info_reqs.htm#layered_interconnect_module_with_printed_component_design_arm.tiebar_printed_component ../layered_interconnect_module_with_printed_component_design/sys/4_info_reqs.htm#layered_interconnect_module_with_printed_component_design_arm.single_stratum_printed_component ../layered_interconnect_module_with_printed_component_design/sys/4_info_reqs.htm#layered_interconnect_module_with_printed_component_design_arm.multi_stratum_printed_component ../layered_interconnect_module_with_printed_component_design/sys/4_info_reqs.htm#layered_interconnect_module_with_printed_component_design_arm.basic_multi_stratum_printed_component ../layered_interconnect_module_with_printed_component_design/sys/4_info_reqs.htm#layered_interconnect_module_with_printed_component_design_arm.printed_connector_component ../layered_interconnect_module_with_printed_component_design/sys/4_info_reqs.htm#layered_interconnect_module_with_printed_component_design_arm.routed_transmission_line ../layered_interconnect_module_with_printed_component_design/sys/4_info_reqs.htm#layered_interconnect_module_with_printed_component_design_arm.printed_component ../layered_interconnect_module_with_printed_component_design/sys/4_info_reqs.htm#layered_interconnect_module_with_printed_component_design_arm.limwpcd_structured_layout_component_subtypes ../layered_interconnect_module_with_printed_component_design/sys/4_info_reqs.htm#layered_interconnect_module_with_printed_component_design_arm.limwpcd_assembly_component_subtypes

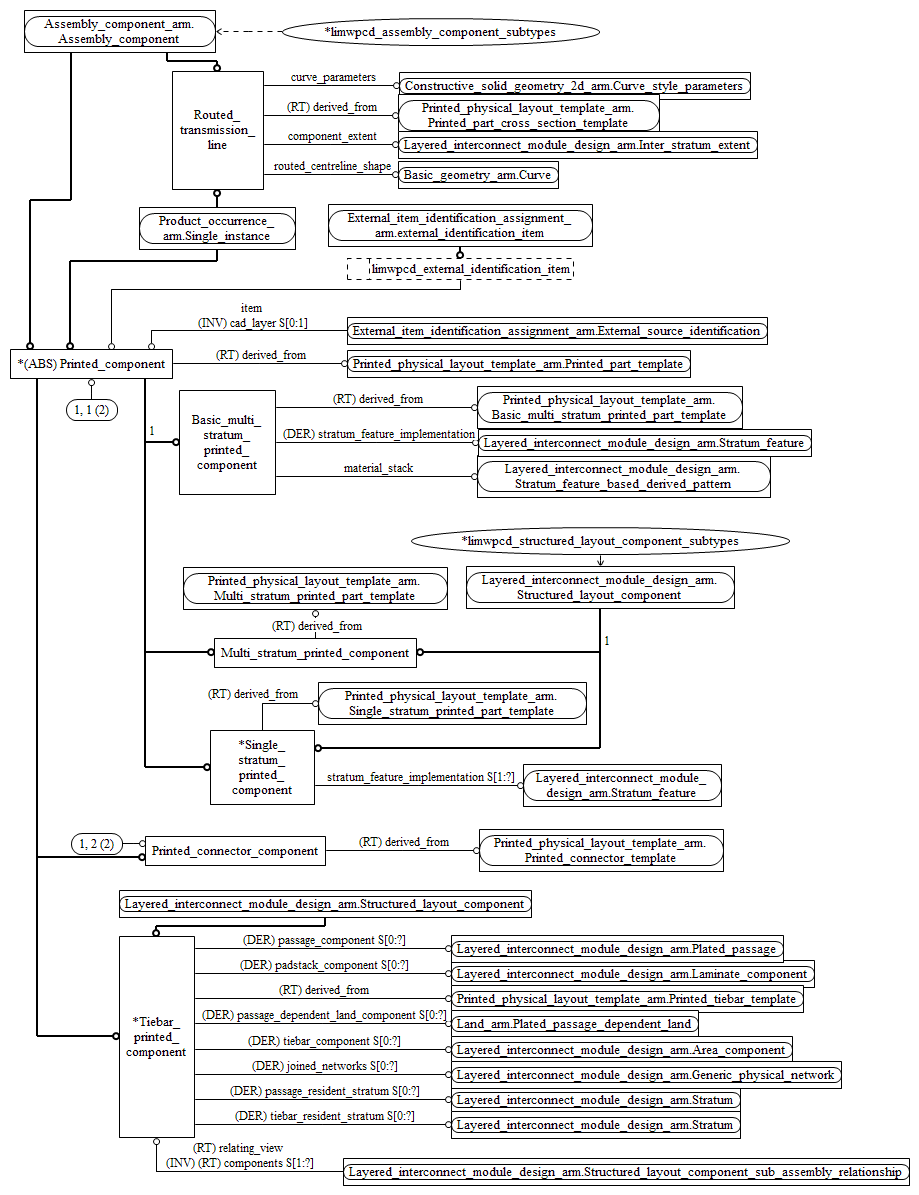

Figure C.2 — ARM entity level EXPRESS-G diagram 1 of 2
